Unity Specifications

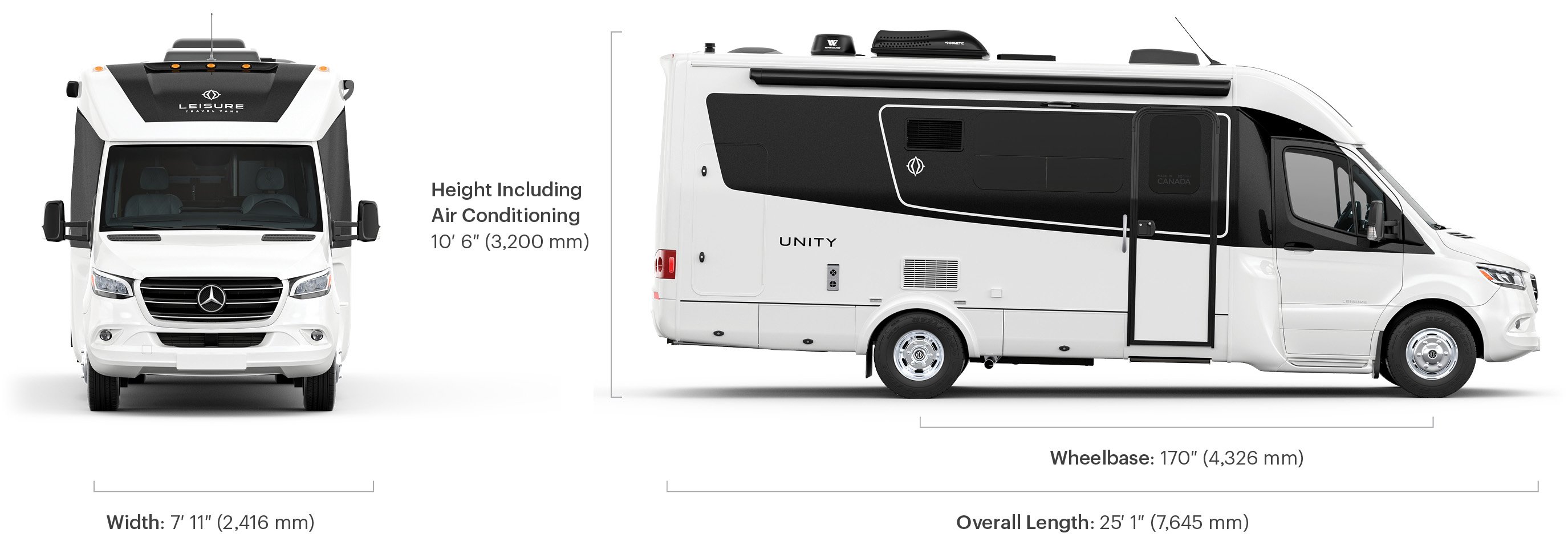

| Dimensions |
 MBL |
 MB |
 FX |
 CB |
 RL |
 TB |
|---|---|---|---|---|---|---|
| Gross Vehicle Weight Rating | 11,030 lb (5,003 kg) | 11,030 lb (5,003 kg) | 11,030 lb (5,003 kg) | 11,030 lb (5,003 kg) | 11,030 lb (5,003 kg) | 11,030 lb (5,003 kg) |
| Wheelbase | 170" (4,326 mm) | 170" (4,326 mm) | 170" (4,326 mm) | 170" (4,326 mm) | 170" (4,326 mm) | 170" (4,326 mm) |
| Length | 25' 1" (7,645 mm) | 25' 1" (7,645 mm) | 25' 1" (7,645 mm) | 25' 1" (7,645 mm) | 25' 1" (7,645 mm) | 25' 1" (7,645 mm) |
| Width | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) |
| Height with Air Conditioning | 10' 6" (3,200 mm) | 10' 6" (3,200 mm) | 10' 6" (3,200 mm) | 10' 6" (3,200 mm) | 10' 6" (3,200 mm) | 10' 6" (3,200 mm) |
| Interior Height | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) |
| Fresh Water Capacity | 25.6 US gal (97 L) | 25.6 US gal (97 L) | 25.6 US gal (97 L) | 36.5 US gal (138 L) | 25.6 US gal (97 L) | 36.5 US gal (138 L) |
| Grey Holding Tank Capacity | 35 US gal (133 L) | 35 US gal (133 L) | 35 US gal (133 L) | 35 US gal (133 L) | 35 US gal (133 L) | 35 US gal (133 L) |
| Black Holding Tank Capacity | 30.6 US gal (116 L) | 30.6 US gal (116 L) | 30.6 US gal (116 L) | 30.6 US gal (116 L) | 30.6 US gal (116 L) | 30.6 US gal (116 L) |
| Fuel Capacity | 24.5 US gal (93 L) | 24.5 US gal (93 L) | 24.5 US gal (93 L) | 24.5 US gal (93 L) | 24.5 US gal (93 L) | 24.5 US gal (93 L) |
| Propane Capacity | 15.8 US gal (59.8 L) | 15.8 US gal (59.8 L) | 15.8 US gal (59.8 L) | 15.8 US gal (59.8 L) | 15.8 US gal (59.8 L) | 15.8 US gal (59.8 L) |
| Primary Bed | Manual Murphy Bed (65" × 74" Sleeping Area) with Adjustable Backrests | Manual Murphy Bed (68" × 76" Sleeping Area) with Adjustable Backrests | Manual Murphy Bed (68" × 76" Sleeping Area) with Adjustable Backrests | Corner Bed with Decorative Bedspread (52" × 76" Sleeping Area) | Manual Murphy Bed (58" × 74" Sleeping Area) | Twin Bed/King Bed with Decorative Bedspreads (2-34"×76" or 1-88"×76" Sleeping Area) |
| Secondary Bed | – | – | – | Ultraleather® Booth Dinette with Easy Lift Table (40" × 68" Sleeping Area) | Optional Inflatable Bed for Front Dinette (45" × 88" Sleeping Area) | Optional Inflatable Bed for Front Dinette (45" × 88" Sleeping Area) |
| Primary TV | 40" Smart with TV Lift, Sound Bar, Subwoofer | 40″ Smart with TV Lift, Sound Bar, Subwoofer | 27″ with Sound Bar | 27″ with Sound Bar | 32″ Smart with Sound Bar | 27″ with Sound Bar |
| Secondary TV | Optional Exterior 40" Smart with Sound Bar | – | 24″ | 24″ | 27″ with Sound Bar | 24″ |
| Exterior Storage Capacity | 45 ft³ (1,264 L) | 55 ft³ (1,557 L) | 34 ft³ (963 L) | 36 ft³ (1,019 L) | 30 ft³ (850 L) | 54 ft³ (1,529 L) |
| Chassis* |
|---|
| *Note: Due to ongoing supply constraints, some Mercedes-Benz Sprinter features shown may not be available on all chassis. |
| Mercedes Benz Sprinter 3500 Dual Rear Wheel Chassis (170″ Wheelbase/11030 lb GVWR), 3.0-L V6 Turbo Diesel (188 hp/325 ft·lb Torque) with 7-Speed Auto Transmission |
| Adaptive Cruise Control |
| Air Conditioning |
| Alternator – 220 A |
| Chrome Grille |
| Concealed Locking Fuel Filler |
| Driver and Passenger Exterior Courtesy Light |
| Driving Assist Package with Rain Sensing Wiper Assist/Active Braking Assist/Lane Keeping Assist/Traffic Sign Assist |
| Electronic Stability Control |
| Integrated Fog Lamps with Cornering Light Function |
| Leather Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function |
| LED Headlamps with High Beam Assist |
| MBUX Touchscreen Multimedia Center with AM-FM/Navigation/Voice Control/Smart Phone Integration/Rear View Camera |
| Passenger Side Sun Visor Mirror |
| Power Windows and Door Locks |
| Power/Heated Exterior Mirrors with Convex and Turn Signal |
| Power/Heated Ultrafabrics® Cab Seats with Armrests/Adjustable Lumbar Support/Recline and Swivel Bases |
| Privacy Drape in Cab |
| Rear Hitch Receiver with 7-Pin Connector |
| Rear View Mirror |
| Removable Carpeted Floor Mat |
| Wheel Simulators |
| Vehicular |
|---|
| 2-Year Roadside Assistance |
| Chassis Battery Disconnect |
| Powder Coated Steel Undercarriage Support Structure |
| Construction |
|---|
| Dinette Slide-Out (MB, FX, CB) |
| Frameless Tinted All-Glass Awning-Style Windows |
| Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior |
| Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior |
| Vacuum Bonded Steel Framed Insulated Floor with Composite Exterior |
| Exterior |
|---|
| Chrome Automotive-Style “LTV” Branding |
| Contoured Entrance Door with Screen Door and Window |
| Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches |
| Illuminated Assist Handle |
| Large Exterior Storage Compartment with Lights (MBL, MB) |
| Large Pass-Through Exterior Storage Compartment with Light (TB) |
| LED Patio Light |
| Painted Colour-Matched Front Bumper |
| Painted Fiberglass Running Boards and Flares |
| Painted Full Body with Clear Coat |
| Powered Retractable Entrance Step |
| Water Pump Switch in Utility Center |
| Interior |
|---|
| Coach Floor Extension |
| Curved Soft Close Overhead Cabinetry Doors with Hidden Catch |
| Day/Night Roller Shades |
| Dry Chemical Fire Extinguisher |
| Full Extension Ball Bearing Soft Close Drawer Tracks |
| Illuminated Assist Handle |
| LED Above-Cabinet Hidden Accent Lighting with Dimmer |
| LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas |
| LED Recessed Strip Lighting Under Overhead Cabinets with Dimmer |
| Opening Skylight with Screen and Shade |
| Smoke, LP, and CO Detectors |
| Soft Vinyl Ceiling Headliner |
| Tile Look Vinyl Flooring Throughout |
| Ultraleather® Wrapped Valances (MBL, MB, FX, CB, TB) |
| Furniture |
|---|
| Ultrafabrics® Booth Dinette with Easy-Lift Table (CB) |
| Ultrafabrics® Leisure Lounge Express Dinette with Leaf Extensions (RL, TB) |
| Ultrafabrics® Leisure Lounge System Dinette with Flexible Seating and Dining Arrangements (MB, FX) |
| Ultrafabrics® Lounge Dinette with 2 Power Recliners and Easy Lift Table (MBL) |
| Ultrafabrics® Rear Sofa with 2 Power Recliners (RL) |
| Ultrafabrics® Rear Sofa with Hidden Table and Ottoman (FX) |
| Galley |
|---|
| Accessory Rail |
| Contoured Solid Surface Corian® Countertop |
| Convection Microwave Oven |
| Countertop Extension (MB, RL, TB) |
| Double Door, 3-way, 6.7 ft3 Refrigerator Freezer |
| Flush Mount LP Cooktop with Hinged Glass Cover |
| Garbage Can (MB, RL, TB) |
| Pull-Out Pantry |
| Stainless Steel Backsplash |
| Stainless Steel Undermount Sink with Sink Cover |
| Lavatory |
|---|
| Accessory Rail |
| Ceramic Foot Flush Toilet with Hand Sprayer (MB, FX, CB) |
| Ceramic Macerator Toilet (MBL, RL, TB) |
| Curved Glass Shower Door (MBL, MB) |
| Flip Down Towel Bar in Shower |
| Grab Handle in Shower |
| Medicine Cabinet with Towel Bar (MB, FX, CB, RL, TB) |
| Retractable Self Cleaning Shower Screen (FX, CB, RL, TB) |
| Robe Hook in Shower |
| Shower with Integrated Storage |
| Shower Skylight |
| Sink – Solid Surface Seamless Sink (MB) |
| Sink – Stainless Steel Undermount (MBL, FX, CB, RL, TB) |
| Entertainment |
|---|
| Exterior Cable TV Hookup |
| Mobile Data/Wi-Fi Extender with Integrated TV Antenna |
| Satellite Dish Pre-Wire |
| Smart Blu-Ray Player |
| USB Outlets in Bed and Living Areas |
| Heating, Ventilating, and Air Conditioning |
|---|
| Furnace – 20,000 BTU (MB, FX, CB, RL, TB) |
| Furnace – Truma Varioheat (MBL) |
| Lavatory Fan and Galley Fan |
| Air Conditioner – Truma Aventa 13,500 BTU Ducted (MBL) |
| Air Conditioner – Ducted (MB, FX, CB, RL, TB) |
| Electrical |
|---|
| 120 V GFCI Protected Receptacles (Patio, Galley, and Lavatory) |
| 12 V Battery Disconnect |
| 2000 W Pure Sine Inverter with 80 A Battery Charger |
| 30 ft Power Cord – 30 A |
| Dual 6V AGM Coach Batteries |
| Multiplex Wiring Control System |
| Surge Protector |
| Plumbing and LP Systems |
|---|
| Antifreeze Pick Up Kit |
| Black Tank Flushing System |
| Contained Sewer Hose |
| Exterior Shower |
| LP Tank |
| Multiple Water Pump Switches |
| Quick Connect Exterior Accessory LP Outlet |
| Tank Level, Battery Monitoring Panel |
| Truma AquaGo Comfort Plus Water Heater |
| Water Filtration System |
| Water Heater By-Pass Valve |
| Water Selector Valve (City Water or Water Tank Fill) |
| Awning Packages |
|---|
| Powered Legless Box Awning with Wind Sensor and LED Lights |
| Slide Topper Awning (MBL, MB, CB, FX) |
| Certification |
|---|
| Canadian Certification – Mandatory for Canada (Optional) |
| RVIA Certification |
| Warranty |
|---|
| Mercedes-Benz – Basic Limited, 3 Years/60,000 km (36,000 miles) |
| Mercedes-Benz Engine – Powertrain Limited, 5 Years/160,000 km (100,000 miles) |
| Triple E RV – 2 Year Limited Coverage, 40,000 km (24,000 miles) |
| Optional Equipment |
|---|
| Alcoa Dura-Bright® Aluminum Wheels (6) – Outer 4 Dura-Bright® Finished |
| Exterior Ladder |
| Exterior Table |
| Front Dinette Inflatable Mattress Kit (RL, TB) |
| Generator – 3.2 kW Onan Diesel with Auto Start and Auto Changeover Switch |
| Generator – 3.6 kW Onan LP with Auto Start and Auto Changeover Switch |
| Jacks – 4 Point Leveling System |
| Leisure Lounge Plus (MB) |
| Lithium Battery Upgrade – Dual 100 A·h, 12 V Lithium Coach Batteries with Internal Heating System |
| Macerator – Termination with Manual Disconnect |
| Overhead Cabinet Door Upgrade – Bianco White FENIX NTM® Matte |
| Remote Key Fob Entry – Coach Entrance Door |
| Removable Table between Captain’s Chairs (MBL, MB, FX, CB) |
| Safe |
| Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD) |
| Solar Panels – Rigid Low Profile with Control Panel – 200 W |
| Solar Panels – Rigid Low Profile with Control Panel – 400 W |
| U-Lounge Dinette (CB) |
