Wonder Specifications
Note: High demand and limited chassis availability are leading to increased wait times for Wonder models. Please contact your local Leisure Travel Vans dealer to learn about current lead times and placing an order.

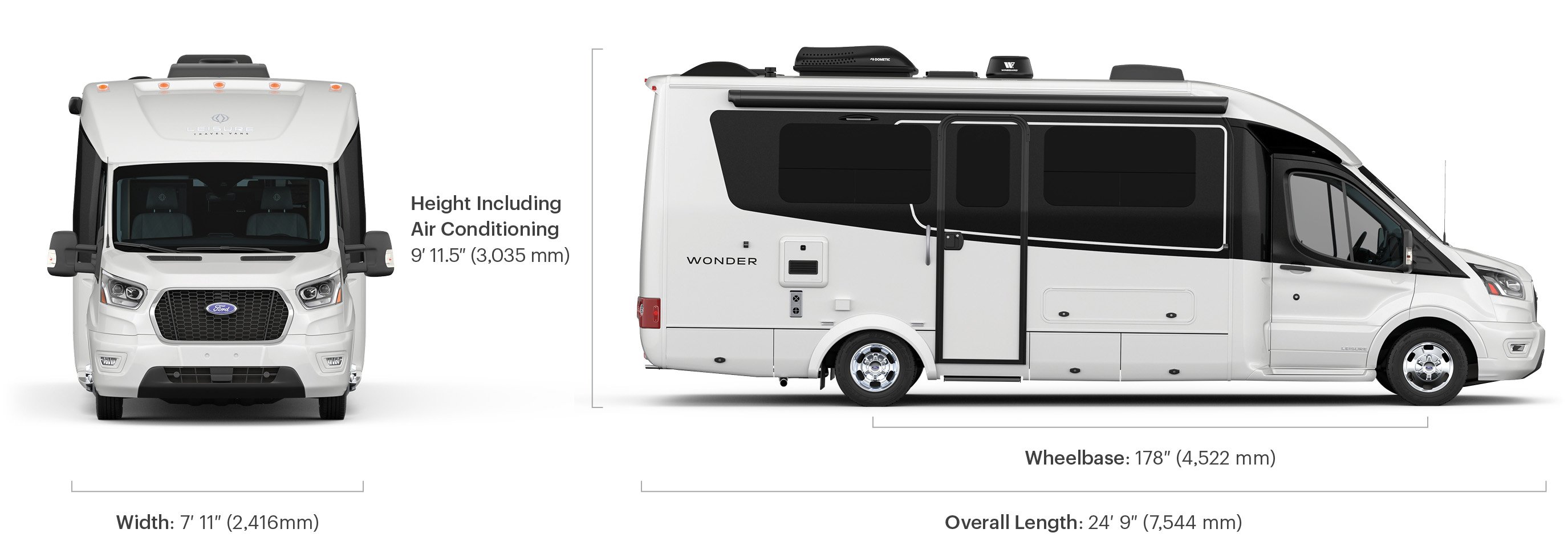

| Dimensions |
 MBL |
 RL |
 RTB |
 FTB |
|---|---|---|---|---|
| Gross Vehicle Weight Rating | 11,000 lbs (4,990 kg) | 11,000 lbs (4,990 kg) | 11,000 lb (4,990 kg) | 11,000 lbs (4,990 kg) |
| Wheelbase | 178" (4,522 mm) | 178" (4,522 mm) | 178" (4,522 mm) | 178" (4,522 mm) |
| Length | 24' 9" (7,544 mm) | 24' 9" (7,544 mm) | 24' 9" (7,544 mm) | 24' 9" (7,544 mm) |
| Width | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) | 7' 11" (2,416 mm) |
| Height with Air Conditioning | 9' 11.5" (3,035 mm) | 9' 11.5" (3,035 mm) | 9' 11.5" (3,035 mm) | 9' 11.5" (3,035 mm) |
| Interior Height | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) | 6' 5" (1,958 mm) |
| Fresh Water Capacity | 33.5 US gal (127 L) | 33.5 US gal (127 L) | 36.5 US gal (138 L) | 33.5 US gal (127 L) |
| Grey Holding Tank Capacity | 26.4 US gal (100 L) | 26.4 US gal (100 L) | 26.4 US gal (100 L) | 26.4 US gal (100 L) |
| Black Holding Tank Capacity | 35 US gal (133 L) | 35 US gal (133 L) | 26.4 US gal (100 L) | 35 US gal (133 L) |
| Fuel Capacity | 25 US gal (95 L) | 25 US gal (95 L) | 25 US gal (95 L) | 25 US gal (95 L) |
| Propane Capacity | 13.2 US gal (50 L) | 13.2 US gal (50 L) | 13.2 US gal (50 L) | 13.2 US gal (50 L) |
| Primary Bed | Manual Murphy Bed (65" × 74" Sleeping Area) | Manual Murphy Bed (58" × 74" Sleeping Area) | Twin Bed/Double Bed (2-32" × 76" or 1-64" × 76" Sleeping Area) | Manual Murphy Bed (65" × 74" Sleeping Area) |
| Secondary Bed | – | Optional Inflatable Bed for Front Dinette (45" × 88" Sleeping Area) | Optional Inflatable Bed for Front Dinette (45" × 88" Sleeping Area) | – |
| Primary TV | 40" Smart with TV Lift, Sound Bar, Subwoofer | 27″ with Sound Bar | 27″ with Sound Bar | 40" Smart with TV Lift, Sound Bar, Subwoofer |
| Secondary TV | Optional Exterior 40" Smart with Sound Bar | 27″ with Sound Bar | 24″ | Optional Exterior 40" Smart with Sound Bar |
| Exterior Storage Capacity | 33 ft³ (923 L) | 15 ft³ (425 L) | 67 ft³ (1,897 L) | 33 ft³ (923 L) |
| Chassis* |
|---|
| *Note: Due to ongoing supply constraints, some Ford Transit features shown may not be available on all chassis. |
| Ford Transit Dual Rear Wheel Chassis (178″ Wheelbase/11,000 lb GVWR), 3.5-L EcoBoost V6 Gas (310 hp/400 ft·lb Torque) with 10-Speed Automatic Transmission, Tow Haul Mode. Available with Optional Intelligent All-Wheel Drive (AWD). |
| Air Conditioning |
| Alternator – 250 A |
| Aluminum Alloy Wheels |
| Concealed Locking Fuel Filler |
| Driver and Passenger Exterior Courtesy Light |
| Fog Lamps |
| HID Headlamps |
| Intelligent Adaptive Cruise Control |
| Intersection Assist |
| Illuminated Sun Visors |
| Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function |
| Post-Collision Braking, Pre-Collision Assist with Auto Emergency Braking, Auto High Beam Headlamps, Lane Keeping System, Forward Collision Warning and Side Curtain Airbag |
| Power Windows and Door Locks |
| Power/Heated Exterior Mirrors with Convex and Turn Signal |
| Privacy Drape in Cab |
| Rear Hitch Receiver with 7-Pin Connector |
| Rear View Mirror |
| Removable Carpeted Floor Mat |
| SYNC® 4 12″ Touchscreen Multimedia Center with AM/FM/SiriusXM/Navigation/Rear-View Camera |
| Tire Pressure Monitoring System |
| Ultrafabrics® Cab Seats with Armrests/Adjustable Lumbar Support/Recline, 4-Way Manual, Swivel Bases |
| Vehicular |
|---|
| 2-Year Roadside Assistance |
| Powder Coated Steel and Aluminum Undercarriage Support Structure |
| Construction |
|---|
| Frameless Tinted All Glass Awning-Style Windows |
| Vacuum Bonded Aluminum Framed Insulated Contoured Sidewalls with Fiberglass Exterior |
| Vacuum Bonded Aluminum Framed Insulated Domed Roof with Fiberglass Exterior |
| Vacuum Bonded Aluminum Framed Insulated Floor with Composite Exterior |
| Exterior |
|---|
| Chrome Automotive-Style “LTV” Branding |
| Contoured Entrance Door with Screen Door & Window |
| Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches |
| Illuminated Assist Handle |
| Large Exterior Storage Compartment with Lights (MBL, FTB) |
| Large Pass Through Exterior Storage Compartment with Bicycle/Cargo Slide (RTB) |
| LED Patio Light |
| Painted Color Matched Front Bumper |
| Painted Fiberglass Running Boards and Flares |
| Painted Full Body with Clear Coat |
| Powered Retractable Entrance Step |
| Water Pump Switch in Utility Center |
| Interior |
|---|
| Coach Floor Extension |
| Curved Soft Close Overhead Cabinetry Doors with Hidden Catch |
| Dry Chemical Fire Extinguisher |
| Full Extension Ball Bearing Soft Close Drawer Tracks |
| Illuminated Assist Handle |
| LED Aisle Lighting and Hidden Accent Lights Above Cabinet with Dimmer |
| LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas |
| LED Recessed Strip Lighting with Dimmer Under Overhead Cabinets |
| Opening Skylight with Screen and Shade |
| Roller Shades |
| Smoke, LP, and CO Detectors |
| Soft Vinyl Ceiling Headliner |
| Tile Look Vinyl Flooring Throughout |
| Furniture |
|---|
| Cloth Fabric Dinette with Flexible Seating/Dining Arrangements (FTB) |
| Ultrafabrics® Dinette with Flexible Seating/Dining Arrangements (RL, RTB) |
| Ultrafabrics® Lounge Dinette with 2 Power Recliners and Easy-Lift Table (MBL) |
| Ultrafabrics® Rear Sofa with 2 Recliners (RL) |
| Galley |
|---|
| Accessory Rail |
| Contoured Solid Surface Corian® Countertop |
| Convection Microwave Oven |
| Countertop Extension (RL, RTB) |
| Countertop Small Appliance Storage Compartment (MBL) |
| Dish Drying Rack – Built-in |
| Double Door, 3-way, 6.7 ft3 Refrigerator Freezer |
| Flush Mount LP Cooktop with Hinged Glass Cover |
| Garbage Can |
| Pull-Out Pantry (RL, RTB) |
| Stainless Steel Backsplash |
| Stainless Steel Undermount Sink with Sink Cover |
| Lavatory |
|---|
| Accessory Rail |
| Ceramic Foot Flush Toilet with Hand Sprayer (FTB) |
| Ceramic Macerator Toilet (RL, RTB) |
| Curved Glass Shower Door (MBL) |
| Flip Down Towel Bar in Shower |
| Grab Handle in Shower |
| Medicine Cabinet (MB, RTB, FTB) |
| Retractable Self Cleaning Shower Screen (RL, RTB, FTB) |
| Robe Hook in Shower |
| Shower with Integrated Storage |
| Shower Skylight |
| Stainless Steel Undermount Sink |
| Water Pump Switch in Lavatory |
| Entertainment |
|---|
| Exterior Cable TV Hookup |
| Mobile Data/Wi-Fi Extender with Integrated TV Antenna |
| Satellite Dish Pre-Wire |
| Smart Blu-ray Player |
| USB Outlets in Bed and Living Areas |
| Heating, Ventilating, and Air Conditioning |
|---|
| Air Conditioner – Truma Aventa 13,500 BTU Ducted (MBL) |
| Air Conditioner (RL, RTB, FTB) |
| Furnace – 20,000 BTU (RL, RTB, FTB) |
| Furnace – Truma Varioheat (MBL) |
| Lavatory Fan and Galley Fan |
| Electrical |
|---|
| 120-V GFCI Protected Receptacles (Patio, Galley, and Lavatory) |
| 12-V Battery Disconnect |
| 2000-W Pure Sine Inverter with 80-A Battery Charger |
| 30-ft Power Cord – 30 A |
| Dual 6-V AGM Coach Batteries |
| MultiPlex Wiring Control System |
| Rear Storage 12-V Power Receptacle (RTB) |
| Surge Protector |
| Plumbing and LP Systems |
|---|
| Antifreeze Pick Up Kit |
| Black Tank Flushing System |
| Contained Sewer Hose |
| Exterior Shower |
| LP Tank |
| Multiple Water Pump Switches |
| Quick Connect Exterior Accessory LP Outlet |
| Tank Level, Battery Monitoring Panel |
| Truma AquaGo Comfort Plus Water Heater |
| Water Heater By-Pass Valve |
| Water Selector Valve (City Water or Water Tank Fill) |
| Awning Packages |
|---|
| Powered Legless Box Awning with Wind Sensor, LED Lights |
| Slide Topper Awning (MBL) |
| Certification |
|---|
| Canadian Certification – Mandatory for Canada (Optional) |
| RVIA Certification |
| Warranty |
|---|
| Ford – Basic Limited, 3 Years/60,000 km (36,000 miles) |
| Ford Powertrain – Powertrain Limited, 5 Years/100,000 km (60,000 miles) |
| Triple E RV – 2 Year Limited Coverage, 40,000 km (24,000 miles) |
| Optional Equipment |
|---|
| AWD – Ford Transit Chassis with Intelligent All-Wheel Drive |
| Exterior Ladder |
| Exterior Table |
| Front Dinette Inflatable Mattress Kit (RL, RTB) |
| Generator – 4.0 kW Gas with Auto Start and Auto Changeover Switch (Mandatory Option) |
| Lithium Battery Upgrade – Dual 100 A·h 12 V Lithium Coach Batteries with Internal Heating System |
| Macerator Sewage Discharge with Manual Disconnect |
| Overhead Cabinet Door Upgrade – Bianco White FENIX NTM® Matte |
| Remote Key Fob Entry – Coach Entrance Door |
| Removable Front Table between Captain’s Chairs (MBL) |
| Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD) |
| Solar Panels – Rigid Low Profile with Control Panel – 200 W |
| Solar Panels – Rigid Low Profile with Control Panel – 400 W |
